 Chapter 3.
LOADS AND LOAD FACTORSLift components of a turn

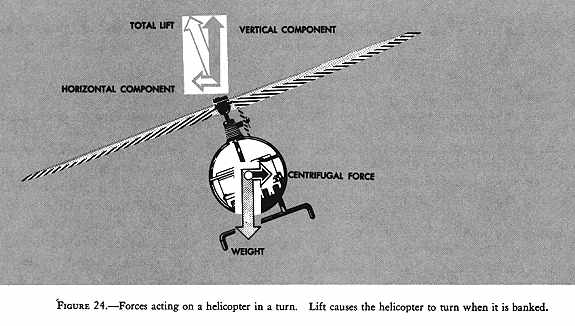

Turns are made in a helicopter, as in an airplane, by banking. In forward flight, the rotor disc is tilted forward which also tilts the total lift-thrust force of the rotor disc forward. This total force is the resultant of a vertical component, lift, and a horizontal component, thrust, acting forward. When the helicopter is placed in a bank, the rotor disc is tilted sideward. This causes the lift component to be tilted sideward, which in turn, is divided into two components - one acting vertically that opposes weight, the other acting horizontally to the side and opposes centrifugal force (see figure 24 to the right). It is this horizontal component of lift that pulls the helicopter in the direction of bank and thus causes it to turn. Briefly then, we can say that a turn is produced by banking the helicopter, thus allowing the lift of the rotor disc to pull the helicopter from its straight course.

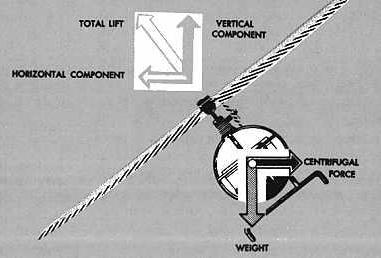

 Figure 25 (above right) - Shows the relationship between
angle of bank and total lift force. As the angle of bank increases, the
total lift force is tilted more horizontally, resulting in a faster
rate of turn as show in the figure to the right.Loads Helicopter strength is measured basically by the total load the rotor blades are capable of carrying without permanent damage. The load imposed upon the rotor blades depends largely on the type of flight. The blades must support not only the weight of the helicopter and its contents (gross weight), but also the additional loads imposed during maneuvers. In straight-and-level flight, the rotor blades support a weight equal to the helicopter and its contents. So long as the helicopter is moving at a constant altitude and airspeed in a straight line, the load on the blades remains constant. When the helicopter assumes a curved flightpath - all types of turns (except hovering turns utilizing pedals only), flares, and pullouts from dives - the actual load on the blades will be much greater because of the centrifugal force produced by the curved flight. This additional load results in the development of much greater stresses on the rotor blades.  Load factor The load factor is the actual load on the rotor blades at any time, divided by the normal load or gross weight (weight of the helicopter and its contents). Any time a helicopter flies in a curved flightpath, the load supported by the rotor blades is greater than the total weight of the helicopter. The tighter the curved flightpath, that is, the steeper the bank, or the more rapid the flare or pullout from a dive, the greater the load supported by the rotor; therefore, the greater the load factor. The load factor and, hence, apparent gross weight increase is relatively small in banks up to 30° (see figure 26 to the right). Even so, under the right set of adverse circumstances, such as high-density altitude, gusty air, high gross weight, and poor pilot technique, sufficient power may not be available to maintain altitude and airspeed. Above 30° of bank, the apparent increase in gross weight soars. At 30° of bank, the apparent increase is only 16 percent, but at 60°, it is 100 percent (fig. 26 to the right). If the weight of the helicopter is 1,600 pounds, the weight supported by the rotor in a 30° bank at a constant altitude would be 1,856 pounds (1,600+256). In a 60° bank, it would be 3,200 pounds; and in an 80° bank, it would be almost six times as much or 8,000 pounds. One additional cause of large load factors is rough or turbulent air. The severe vertical gusts produced by turbulence can cause a sudden increase in angle of attack, resulting in increased rotor blade loads that are resisted by the inertia of the helicopter. To be certificated by FAA, each helicopter must have a maximum permissible limit load factor that should not be exceeded. As a pilot, you should have the basic information necessary to fly a helicopter safely within its structural limitations. Be familiar with the situations in which the load factor may approach maximum, and avoid them. If you meet such situations inadvertently, you must know the proper technique.
Your Thoughts... |
|
| Home | Login | Schedule | Pilot Store | 7-Day IFR | IFR Adventure | Trip Reports | Blog | Fun | Reviews | Weather | Articles | Links | Helicopter | Download | Bio |
| All content is Copyright 2002-2010 by Darren Smith. All rights reserved. Subject to change without notice. This website is not a substitute for competent flight instruction. There are no representations or warranties of any kind made pertaining to this service/information and any warranty, express or implied, is excluded and disclaimed including but not limited to the implied warranties of merchantability and/or fitness for a particular purpose. Under no circumstances or theories of liability, including without limitation the negligence of any party, contract, warranty or strict liability in tort, shall the website creator/author or any of its affiliated or related organizations be liable for any direct, indirect, incidental, special, consequential or punitive damages as a result of the use of, or the inability to use, any information provided through this service even if advised of the possibility of such damages. For more information about this website, including the privacy policy, see about this website. |

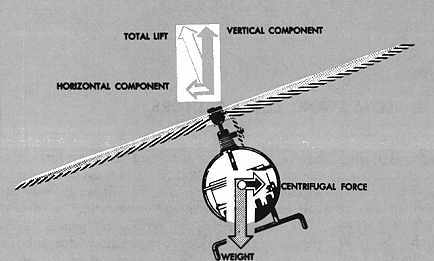

As the angle of bank increases, the total lift force is
tilted more toward the horizontal, thus causing the rate of turn to
increase because more lift is acting horizontally. Since the resultant
lifting force acts more horizontally, the effect of lift acting
vertically (vertical component) is decreased (see figure 25 to the
right). To compensate for this decreased vertical lift, the angle of
attack of the rotor blades must be increased in order to maintain
altitude. The steeper the angle of bank, the greater the angle of
attack of the rotor blades required to maintain altitude. Thus, with an
increase in bank and a greater angle of attack, the resultant lifting
force will be increased and the rate of turn will be faster.
